SMD 3528 Flexible Strips

Your Position: Home >> Products >> LED Flexible Strips >> SMD 3528 Strips >> SMD 3528 Flexible Strips

Waterproof SMD 3528 Flexible LED Strips Single-side Glued
Model No.: QL-F3528B60-X-12
LED Qty: 120LEDs/m
PCB Dimension: 500*8*0.22mm
Voltage: DC12V / DC24V
Power Comsuption: 9.6W/m
Waterproof Grade: IP65
3 LED cuttable, matching middle-connector & suitable driver

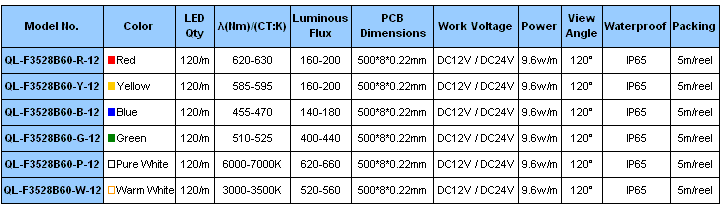

Specifications:

Features:
1. SMD 3528 LED as lighting sources
2. Different colors are available
3. Input voltage: 12V or 24V
4. Every 3-LED are cuttable for 12V strips, while every 6-LED are cuttable for 24V strips.
5. White, Black, Yellow PCB Board are available

Applications:
1. Decorative lighting for festivals, events, shows, exhibitions
2. Architectural lighting for canopy, corridor, window, archway,
3. Backlight or edge light for signage
4. Path or contour marking
5. Channel letter lighting
