600*600mm Dimmable LED Panel Light with Inside Driver

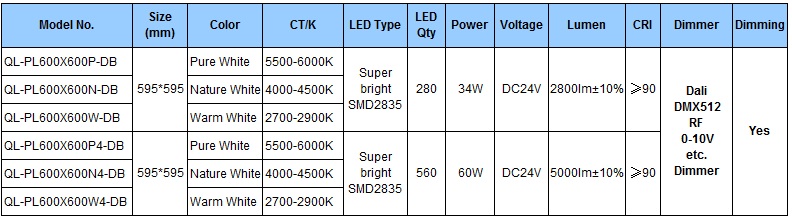

Model No.: QL-PL600X600X-DB
Light Source: CRI90 Super Bright SMD2835
LED Qty: 280/560
Input: DC24V
Power: 34W/60W
Color: Warm White, Nature White, Pure White
Dimenstion: 595mm*595mm*12.7mm

Features of B Series Panel Light:
1. Constant current version but with constant voltage input.
2. Can be working with DC24V power supply directly
3. Can be working with any DC24V PWM control system or dimmer, such as
DMX512, Dali, RF, 0-10V, etc. The application is very conveniently
4. Made with CRI90 Super bright SMD2835
5. 6mm Light guide to ensure uniform brightness.
6. High accurate constant current driver with very stable quality.
7. Super quality aluminum body ensures super heat dissipation.
8. Very thin body only 12.7mm.

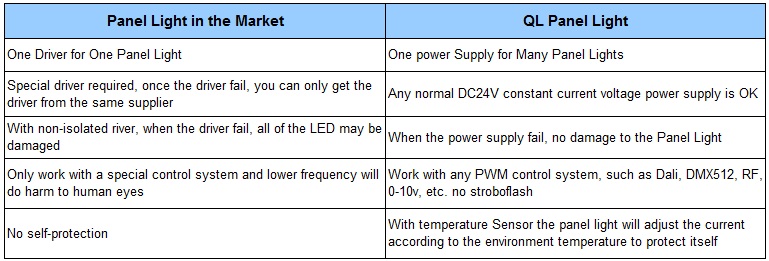

Difference between QL Ceiling Panel Light and Others


  Can be working with any DC24V PWM Control System or dimmer(DMX512, RF, 0-10V, Dali, etc.)

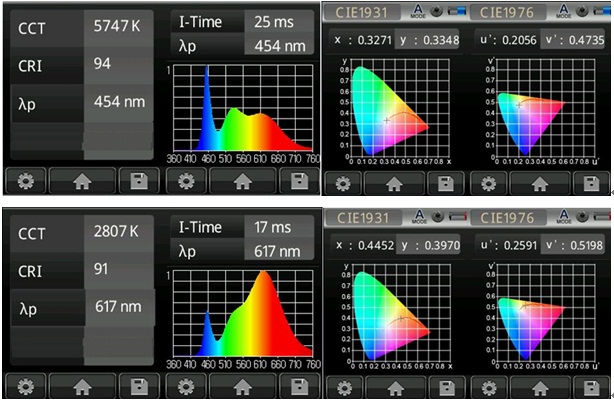

Light Source Test Report:

Illumination Map:


1. Hotels, conference, meetings rooms
2. Factories Offices
3. Commercial Purpose
4. Residential/Institution Buildings
5. Schools, Colleague, Universities, Hospitals
6. Call centers, shopping malls and exhibition Hall and other public places
7. Exhibition halls, art galleries, museums, offices, reading rooms, contour range.
