300*600mm CCT Adjustable LED Panel Light
Model No.: QL-PL300X600TH-DB
Light Source:  Special SMD3528 (One LED with Two Chips)
LED Qty: 384
Input: DC24V
Power: 30W
Lumen:
2300-2500lm
Color: CCT Adjustable (2500K-7000K)
Dimenstion: 595mm*595mm*12.7mm

Special Features:
1.  Color temerpature can be adjusted from 2500K-7000K
2
. Made with Special SMD3528 (One LED with two chips)
3. Constant current version but with constant voltage input.
4. Can be working with DC24V power supply directly
5. Can be working with any DC24V PWM control system or dimmer, such as
DMX512, Dali, RF, 0-10V, etc. The application is very conveniently
6. 6mm Light guide to ensure uniform brightness.
7. High accurate constant current driver with very stable quality.
8. Super quality aluminum body ensures super heat dissipation.
9. Very thin body only 12.7mm.

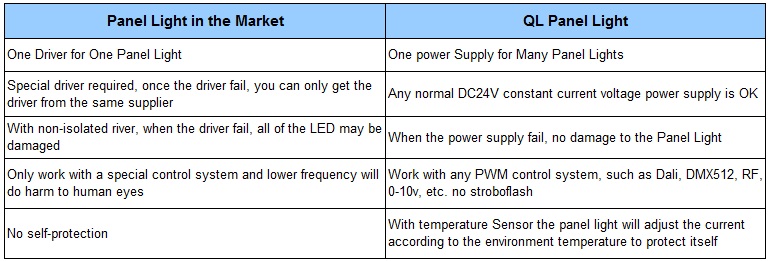

Difference between QL Ceiling Panel Light and Others

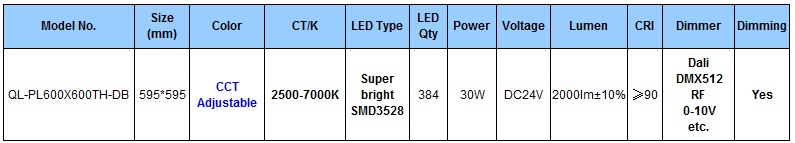

Parameters:


2.4G Controller:

1. One remote can control many receivers simultaneously
2. The receivers can be divided in four groups and control separately
3. All-on and All-off are available
4. Both dimming and CCT Adjustable are available

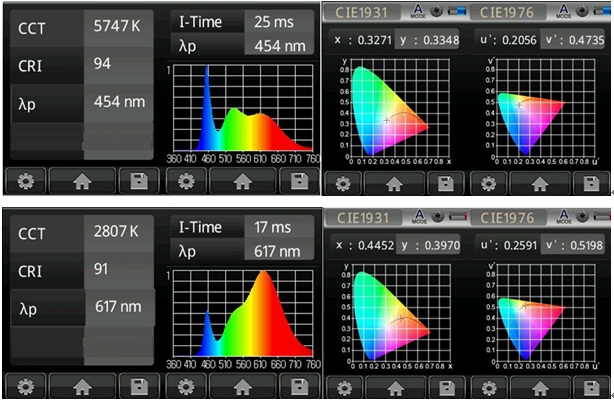

Light Source Test Report:


Connections:


Installations:


Application:
1. Hotels, conference, meetings rooms
2. Factories Offices
3. Commercial Purpose
4. Residential/Institution Buildings
5. Schools, Colleague, Universities, Hospitals
6. Call centers, shopping malls and exhibition Hall and other public places
7. Exhibition halls, art galleries, museums, offices, reading rooms, contour range.
