Surface Mounted Square LED Panel Light

Temperature Sensor Surface Mounted Square LED Panel Light
With Temperature Sensor
Dimension: 180x180, 240x240, 300x300
Power: 14W/ 19W/ 24W
LED: CRI90 SMD2835
Color: Warm White, Nature White, Pure White
Color Rendering: CRI(Ra)≥90
With inside constant current driver with temperature sensor

Features:
1. Constant current version but with constant voltage input.
2. Can be working with DC24V power supply directly
3. Can be working with any DC24V PWM control system or dimmer, such as DMX512, Dali, RF, 0-10V, etc. The application is very conveniently
4. CRI(Ra)≥90
5. Made with Super bright SMD2835 LED
6. High accurate constant current driver with very stable quality.
7. Super quality aluminum body ensures super heat dissipation.

Difference between QL Ceiling Panel Light and Others

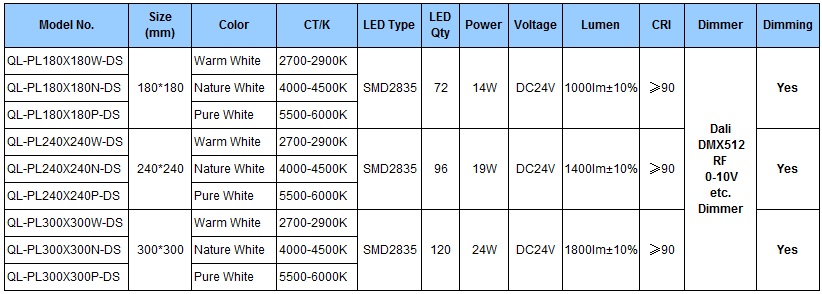

Parameters:

Controller: Can be working with any DC24V PWM Control System or dimmer(DMX512, RF, 0-10V, Dali, etc.)

Connections:

Light Source Test Report:

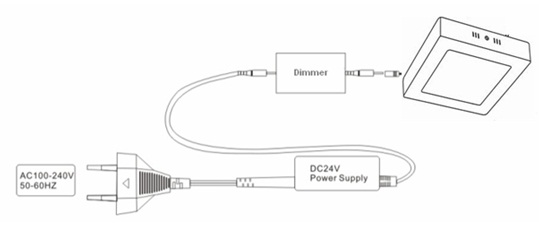

Connection:

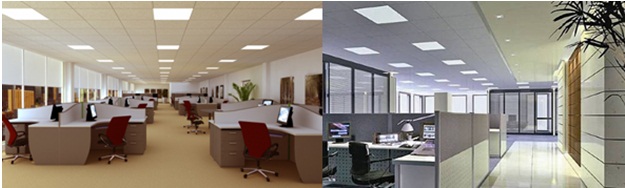

Application:
1. Hotels, conference, meetings rooms
2. Factories Offices
3. Commercial Purpose
4. Residential/Institution Buildings
5. Schools, Colleague, Universities, Hospitals
6. Call centers, shopping malls and exhibition Hall and other public places
7. Exhibition halls, art galleries, museums, offices, reading rooms, contour range.
